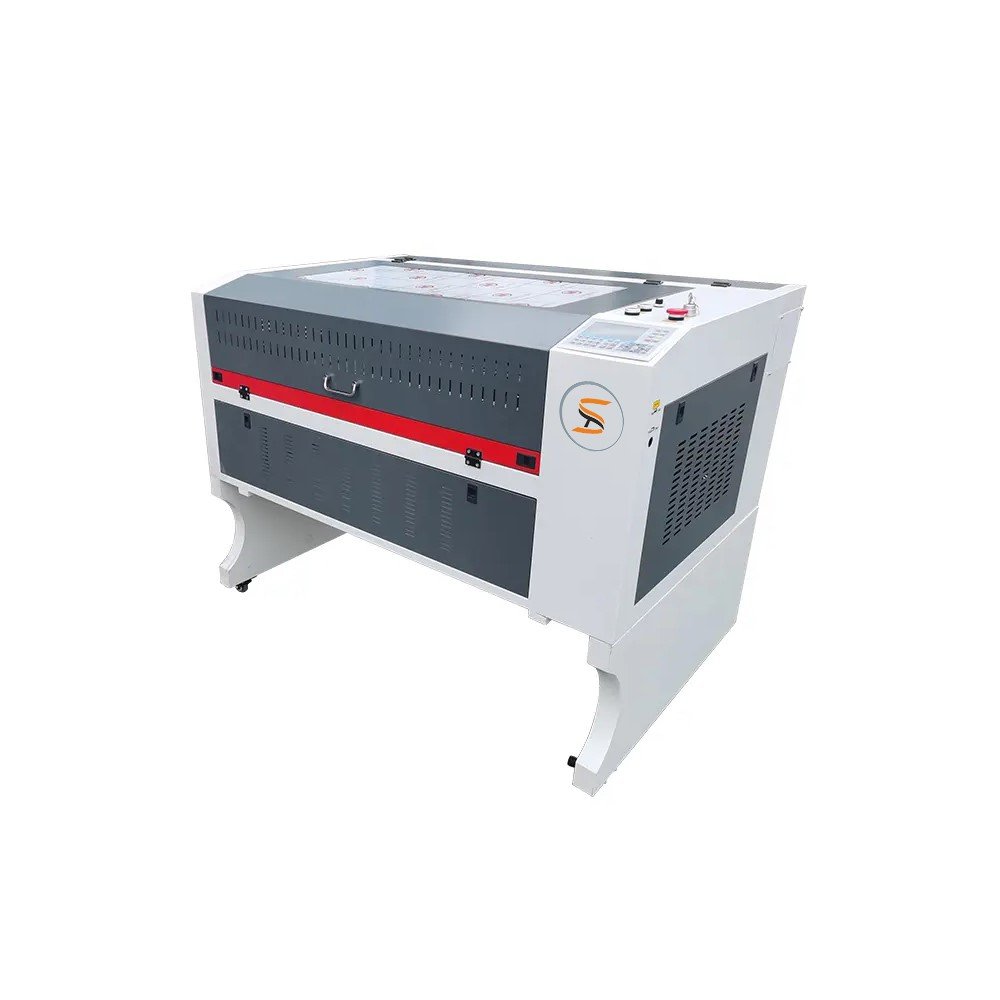

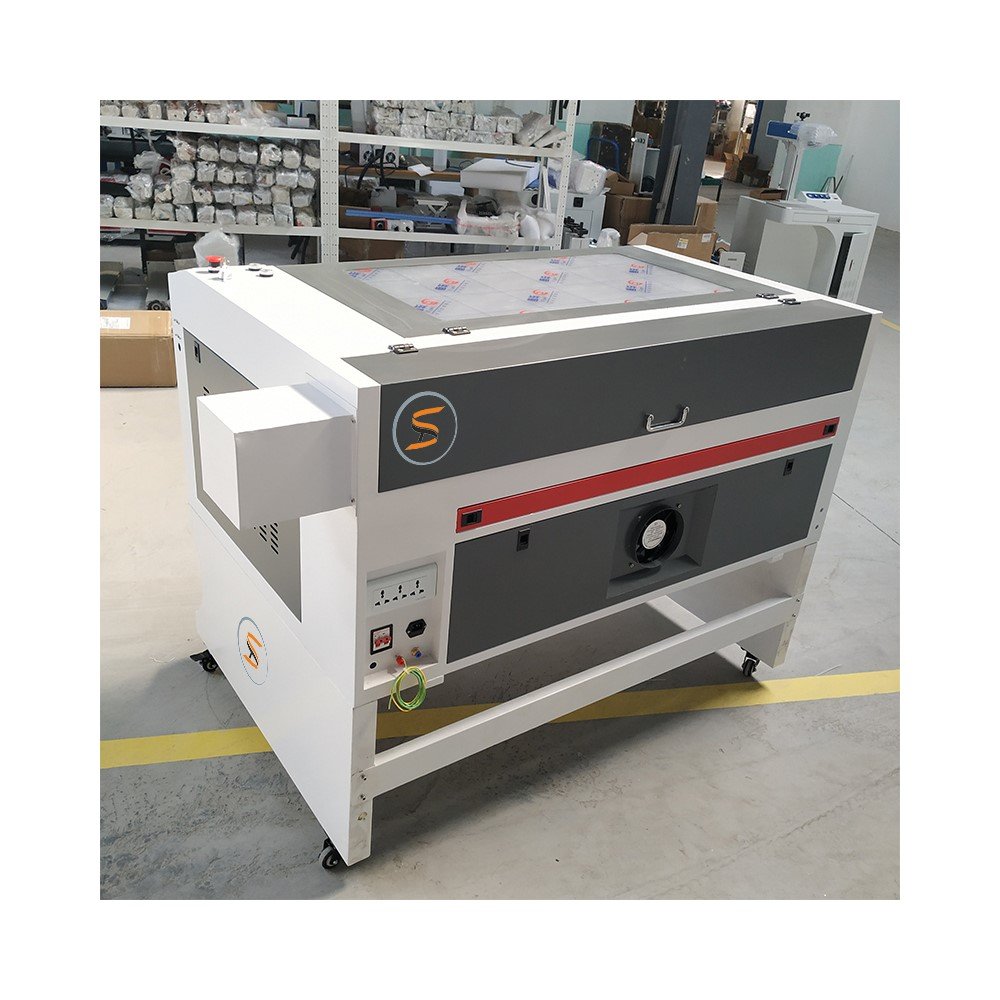

ST6090L CO2 Laser Cutting Machine
₹350,000.00
Model No. – ST- 6090L – CO2LCM
Quick Technical
- Colour – Gray and white
- Gross Weight -185KG
- Laser Power – 80W （60w/100w/130w as optional）
- Engraving Speed – 0-400mm/s
- Brand laser tube, good spot quality, stable output power, good engraving effect.
Description
Product Features

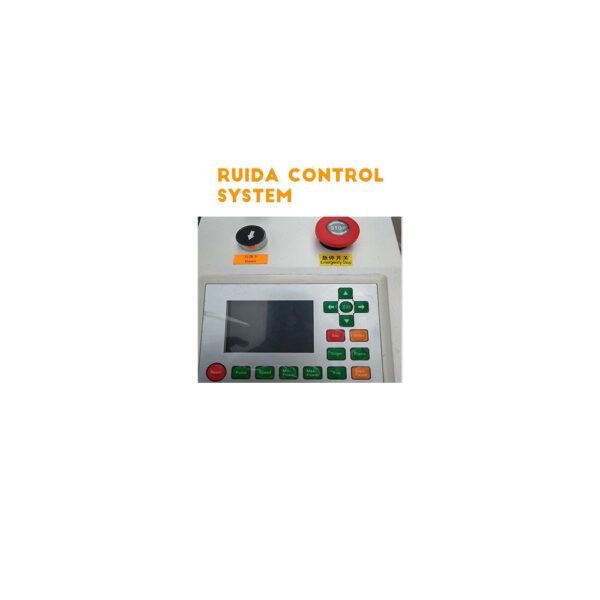

1. Professional Ruida 6442S laser control system,precise,stable and fast.

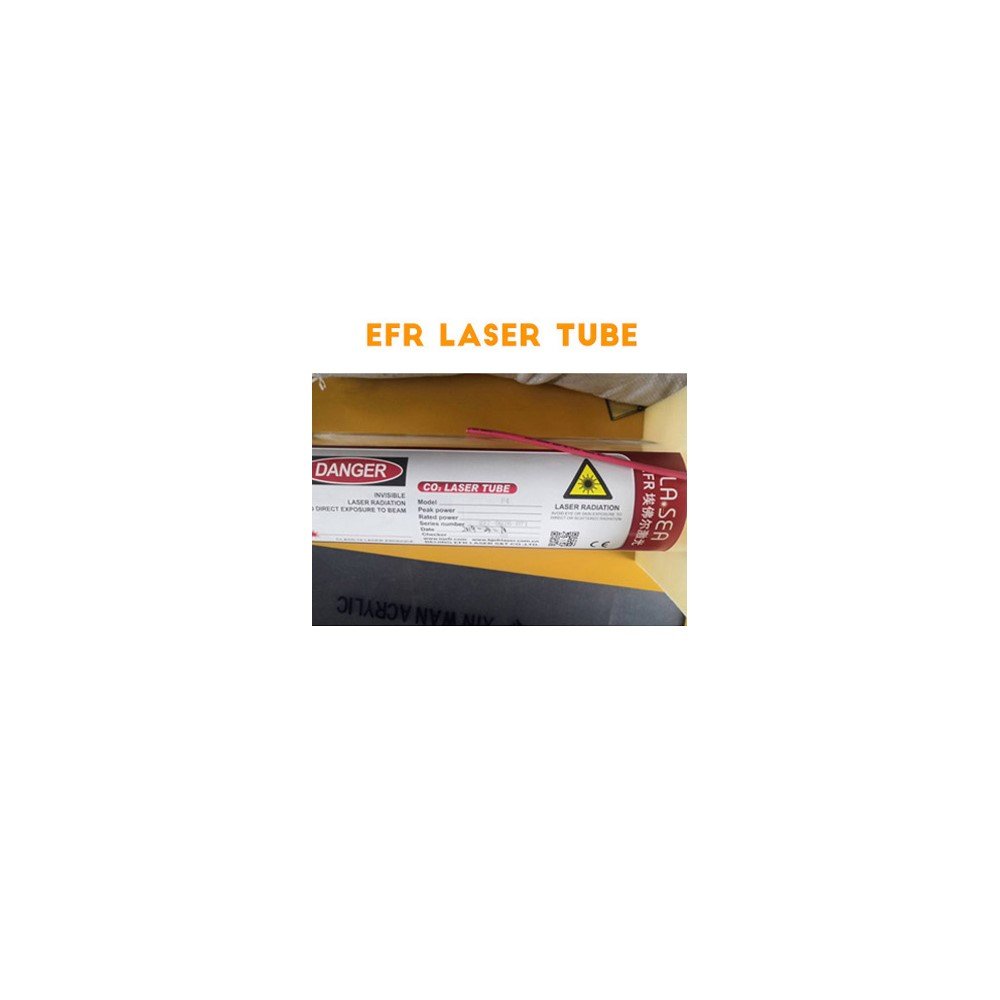

2. Brand laser tube.good spot quality,stable output power,good engraving effect.
3. With universal wheel bracket,easy to move. 4. USB2.0 interface,support offline work.
5. Color LCD display,support multi-language operation.
6. XY three-axis linear guide,higher precision and more stable performance.
7. Electric UP&Down platform,convenient for customers to place thick materials.
8. Optional rotary attachment,convenient for customers to engrave the required materials.
Application industrial:
Advertising signs, craft gifts, crystal jewelry, paper cutting technology, architectural models, lighting, printing and packaging, electronic appliances, clothing bags, photo frame production and other industries.
Application Materials:
Wood products, Plywood, Acrylic, Plastic, Cloth, Leather, Paper, Rubber, Bamboo, Marble, Double layer plastic, glass, wine bottles etc.
Features of laser engraving cutting machine 6090:
1. Professional Ruida 6442S or 6445G laser control system, precise, stable and fast.
2. Brand laser tube.good spot quality, stable output power, good engraving effect.
3. With universal wheel bracket, easy to move.
4. USB2.0 interface, support offline work.
5. Color LCD display, support multi-language operation. Electric UP & Down platform, convenient for customers to place thick materials.
6. Optional rotary attachment, convenient for customers to engrave the required materials.
technical fact
Product name | ST6090 co2 cnc laser cutting engraving machine |
Colour | Gray and white |
Working Table Size | 600mmm *900mm |
Laser Tube | Sealed CO2 glass Tube |

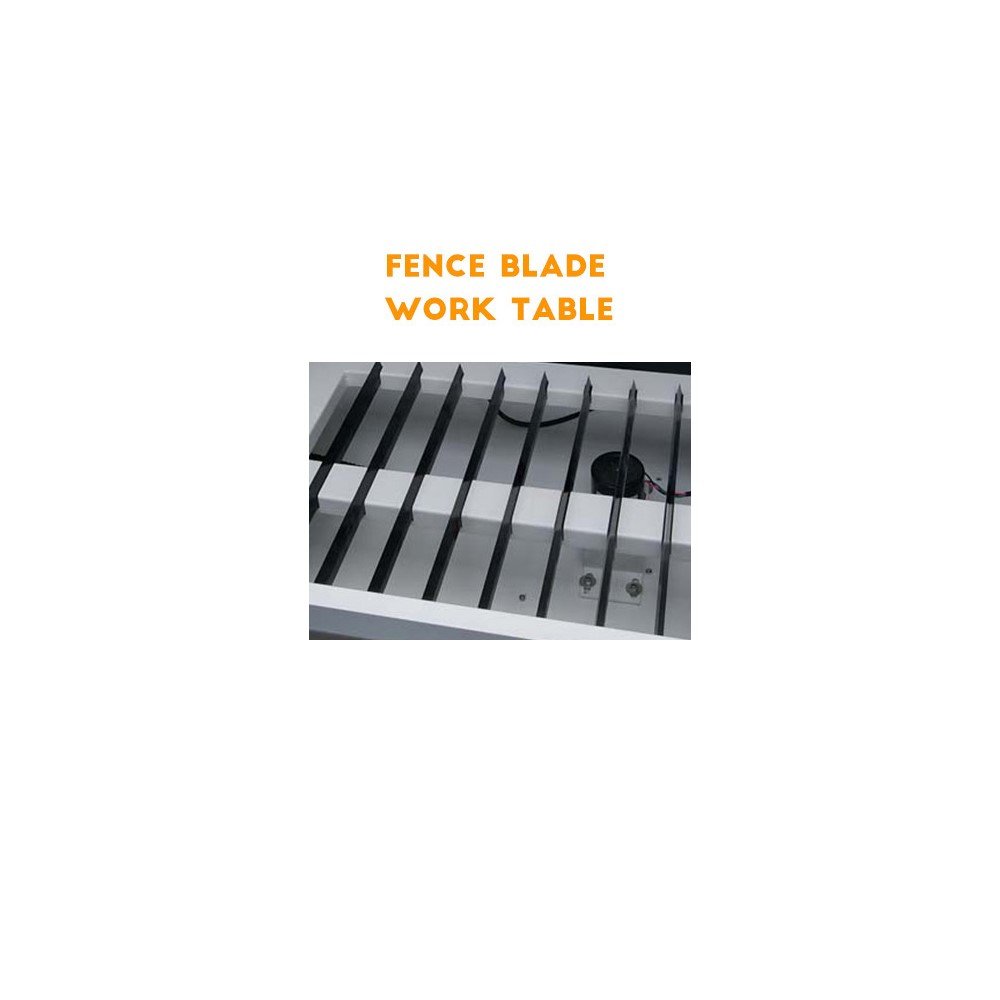

Working Table | Honeycomb & Fence blade table |
Laser power | 80W （60w/100w/130w as optional） |
Cutting Speed | 0-60 mm/s |
Engraving Speed | 0-400mm/s |
Resolution | ±0.05mm/1000DPI |
Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) |
Support Fils | BMP,HPGL,PLT,DST and AI |
Interface | USB2.0 |
Software | Corellaser(support coreldraw direct output) |
Computer system | Windows XP/win7/ win8/win10 |
Motor | Stepper Motor |
Power Voltage | AC 110 or 220V±10%,50-60Hz |
Power cable | European Type/India Type/America Type/UK Type |
Working Environment | 0-45℃(temperature) 5-95%(humidity) |
Power consumption | <900W (Total) |
Z-Axis Movement | Automatic |
Position system | Red-light pointer |
Cooling way | Water cooling and protection system |
Cutting thickness | Please consult sales |
Packing Size | 155x110x105cm |
Gross Weight | 185KG |
Package | Standard plywood case for export |
Warranty | All life free tech support, one year warranty, except consumables like laser tube, mirror and lens, etc. |
Free accessories | Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable |
Optional parts | Spare focus lens Spare reflecting mirror Spare rotary for cylinder materials Industrial Water cooler |
SAMPLES OF PRODUCTS
Product Samples
