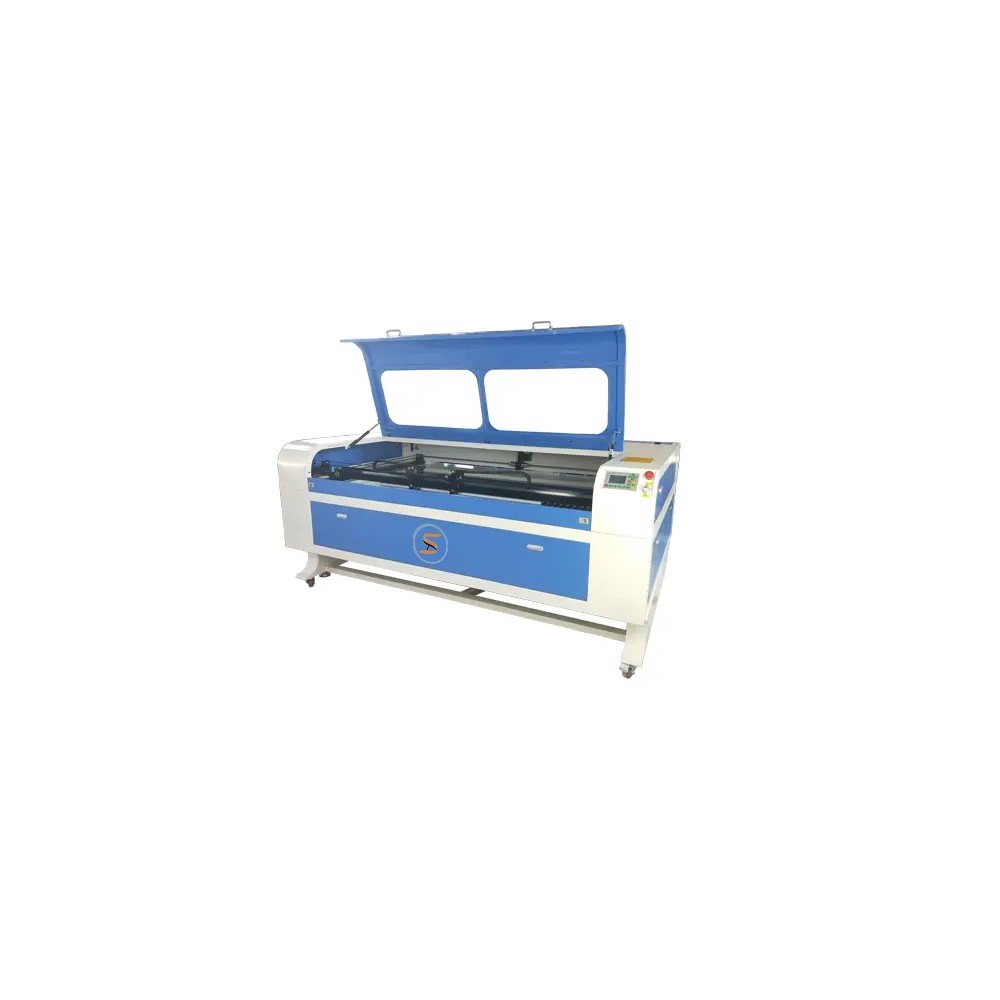

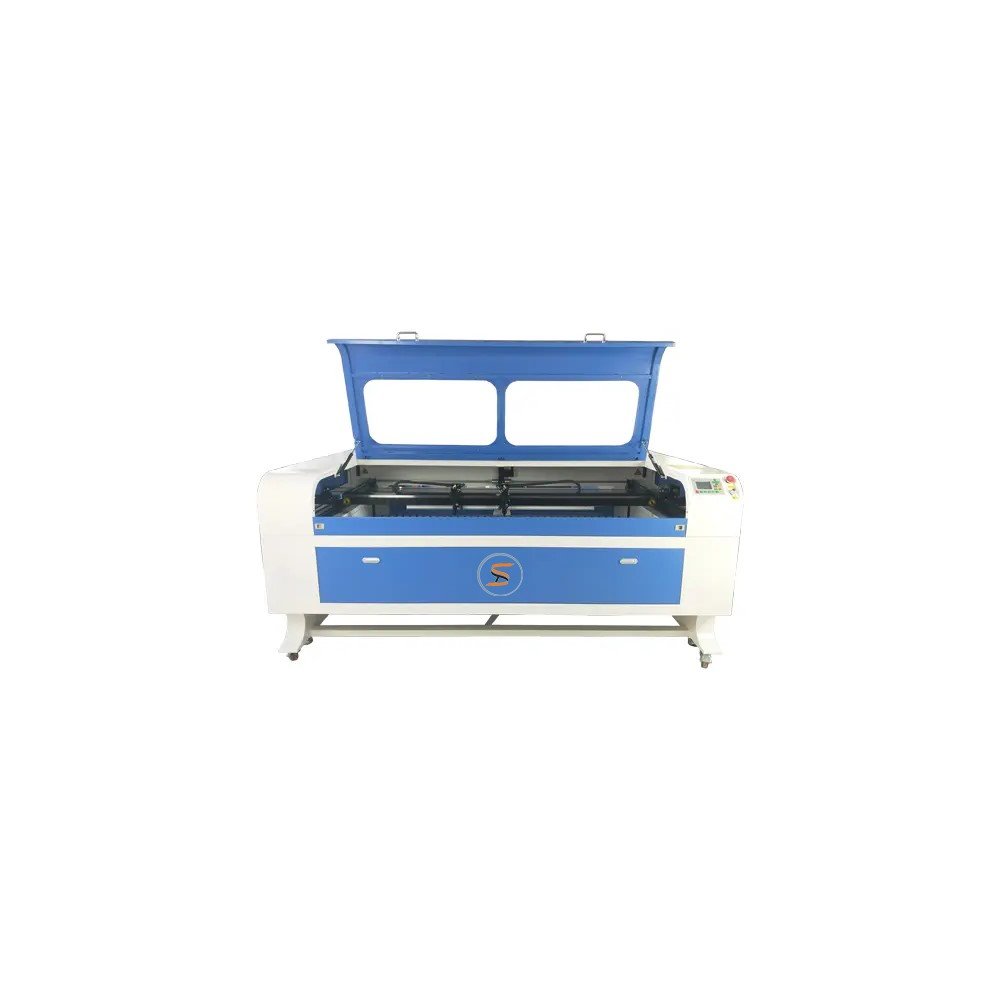

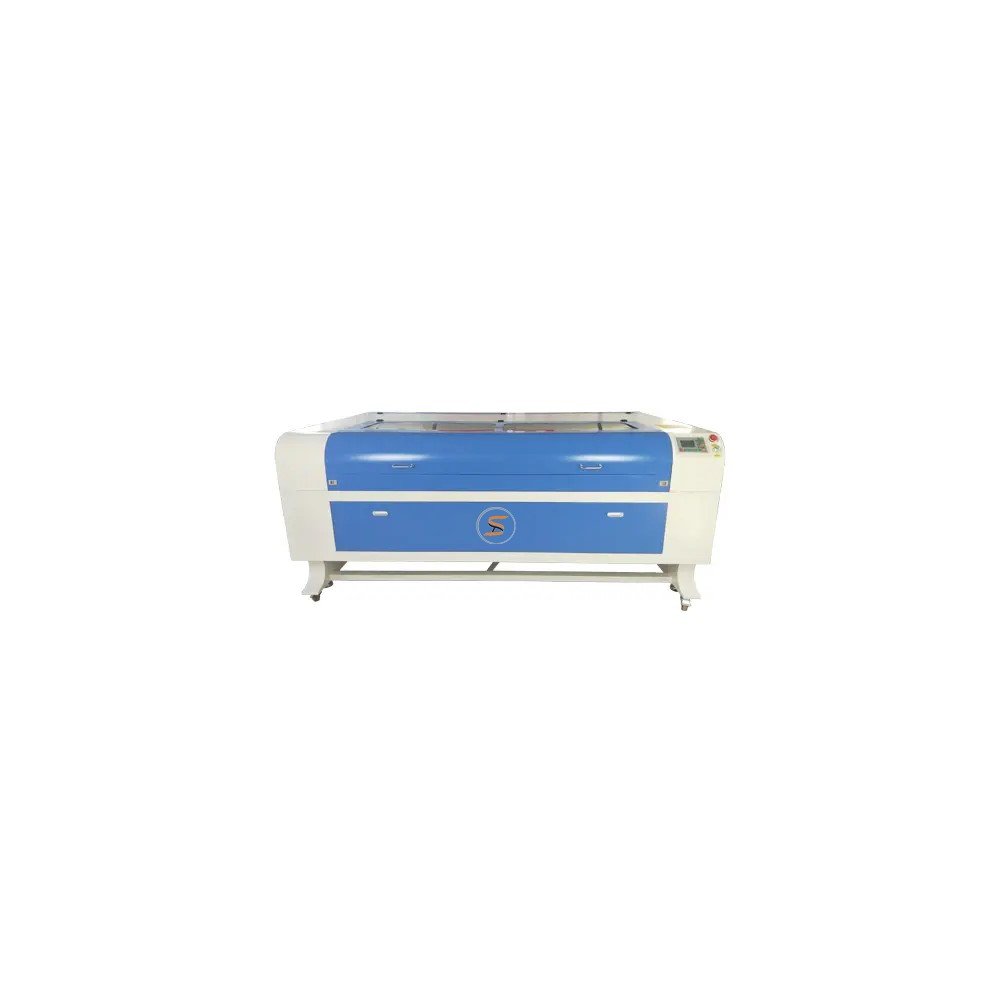

ST1810 CO2 Laser cutting and engraving machines
₹260,000.00
Model No. – ST- ST1810 – Engraving

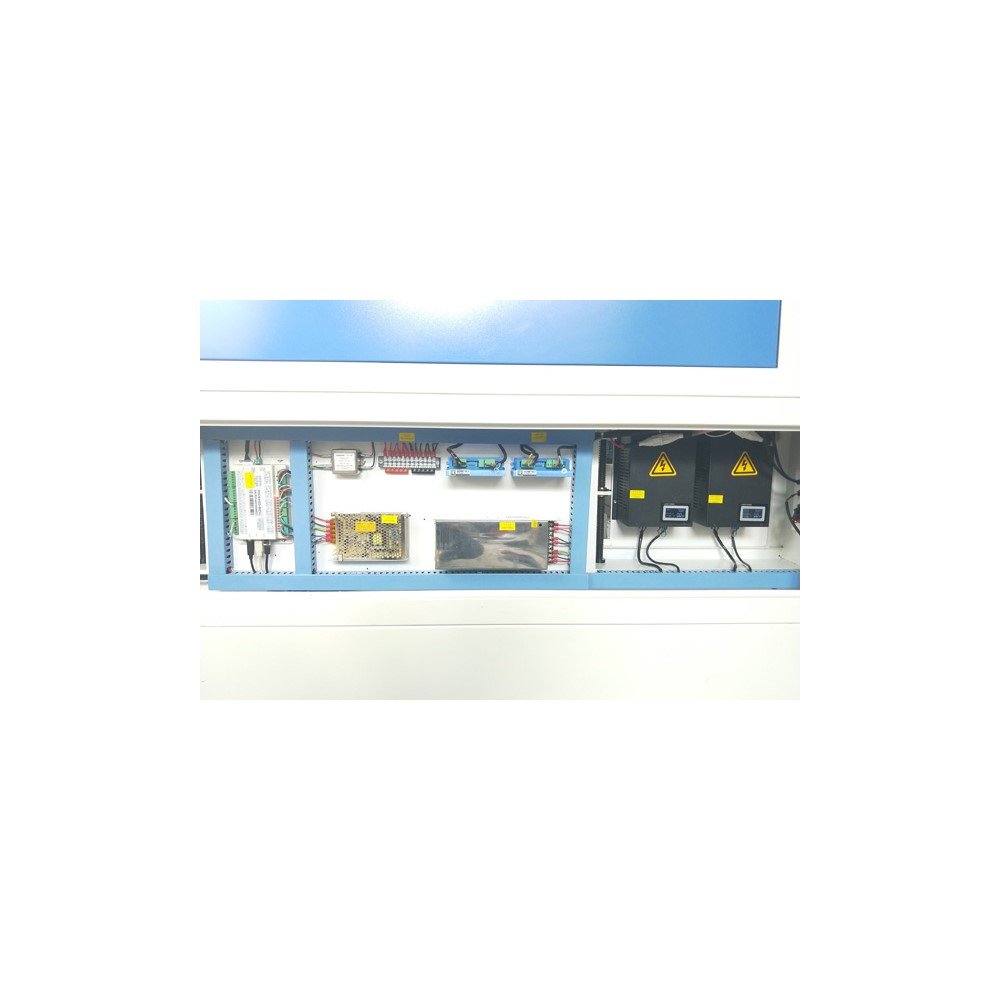

Professional Ruida 6442s laser control system, precise, stable and fast.
The cabinet design is more sturdy and equipped with a waste collection drawer for easy collection of cutting waste.
Quick Technical

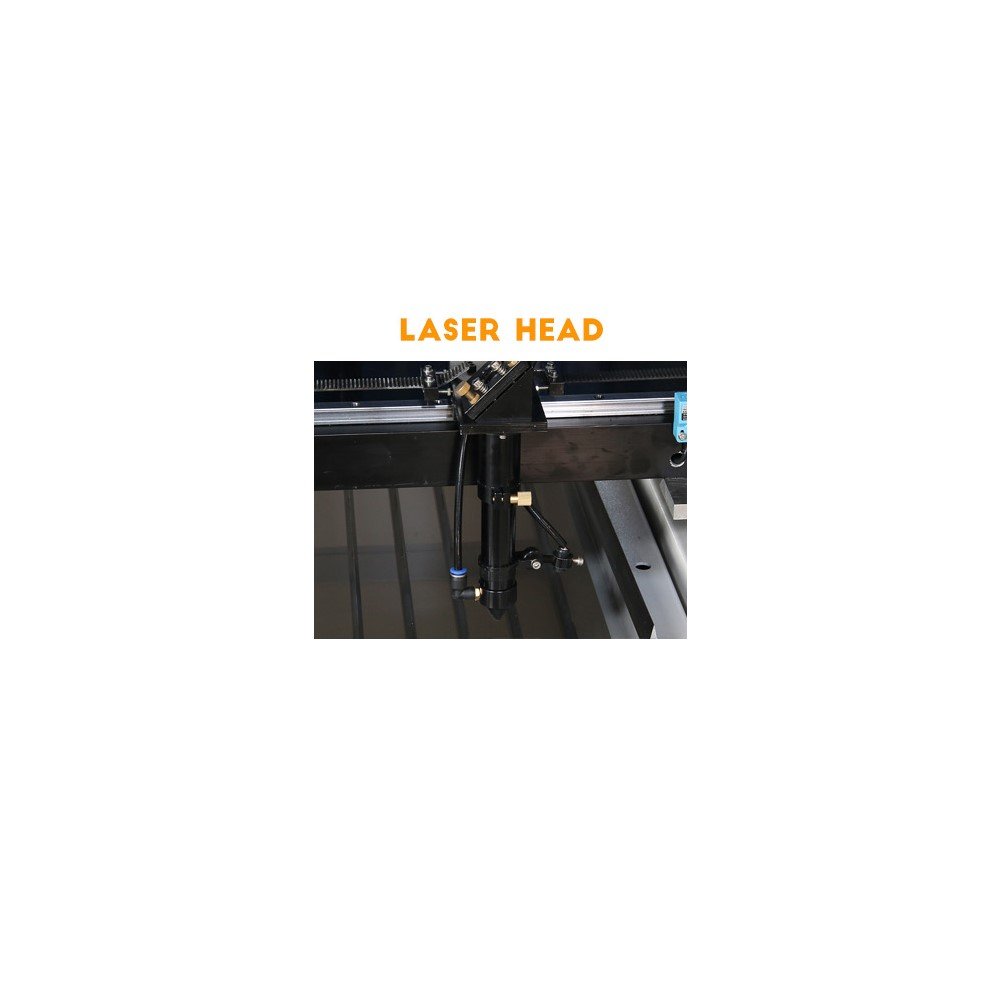

- Laser Head Quantity – One or double
- Motor – Stepper Motor
- Laser Power – 130w
- Engraving Speed – 0-600mm/s
- Brand laser tube.good spot quality,stable output power,good engraving effect.
Description

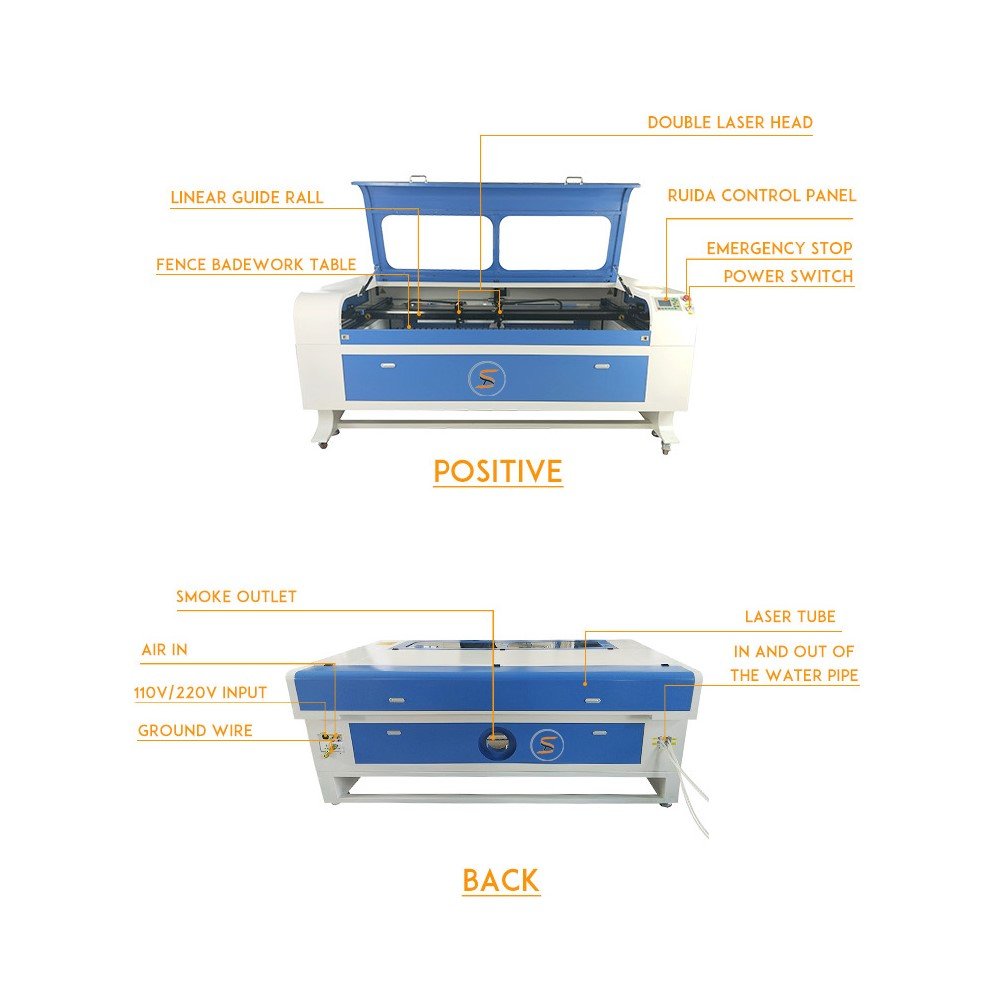

Product Features
1.Professional Ruida 6442s laser control system, precise, stable and fast.
2.Brand laser tube, good spot quality, stable output power, good engraving effect.
3.Usb2.0 interface, support offline work.
4.Color LCD display, support multi-language operation.
5.Taiwan PMI linear guide rail makes the optical path run more smoothly and the engraving and cutting effect is much more better.
6.The cabinet design is more sturdy and equipped with a waste collection drawer for easy collection of cutting waste.
7.Electric UP&Down platform, convenient for customers to place thick materials.
8.Optional rotary attachment, convenient for customers to engrave the required materials.
9.large working area, suitable for engraving and cutting large area materials
technical fact
| Model No. | ST1810 |
| Working Table Size | 1800mm *1000mm |

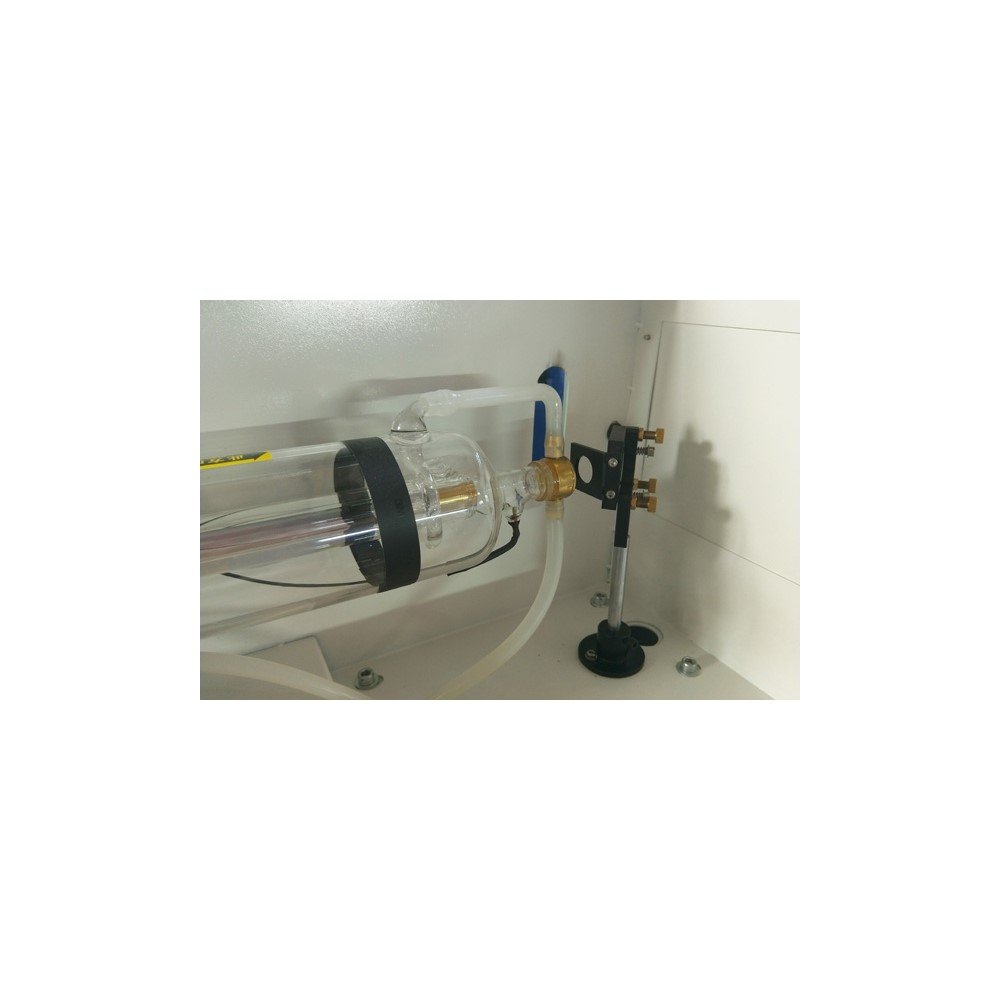

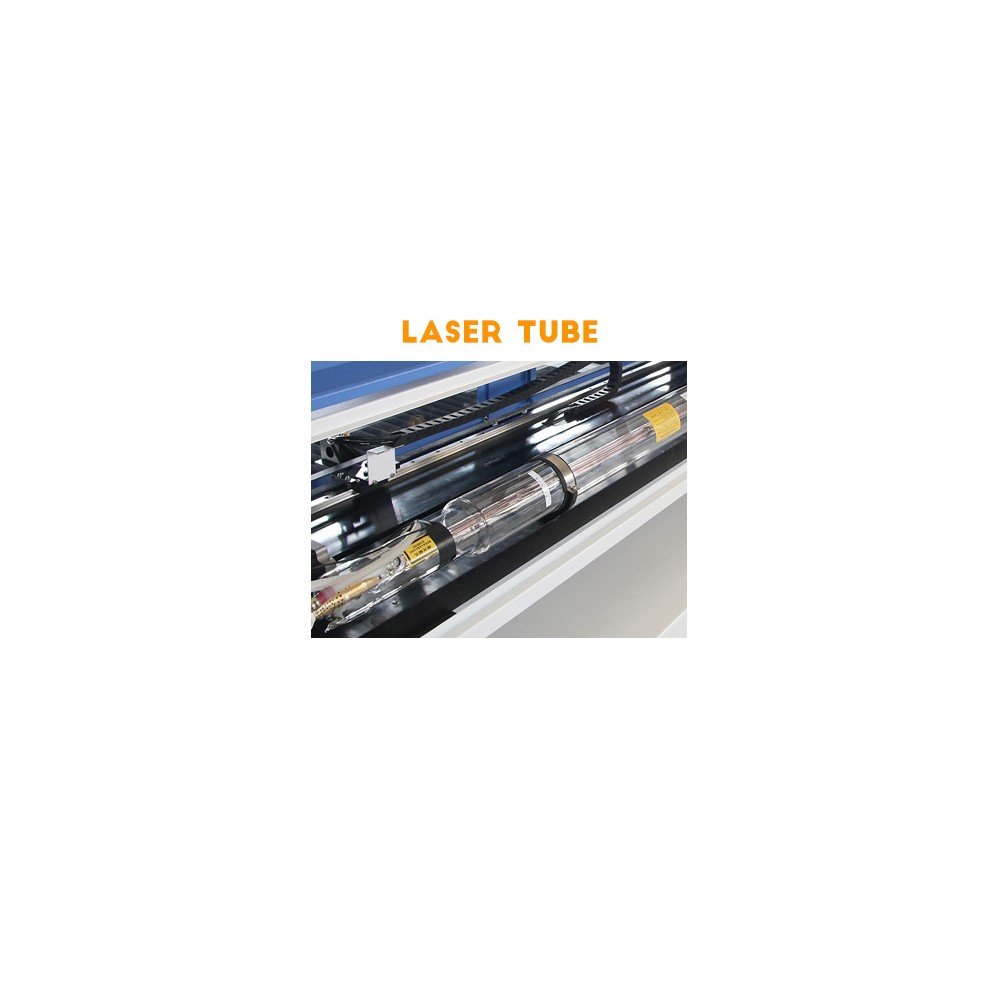

| Laser Tube | Sealed CO2 glass Tube |
| Laser Head Quantity | One or double |

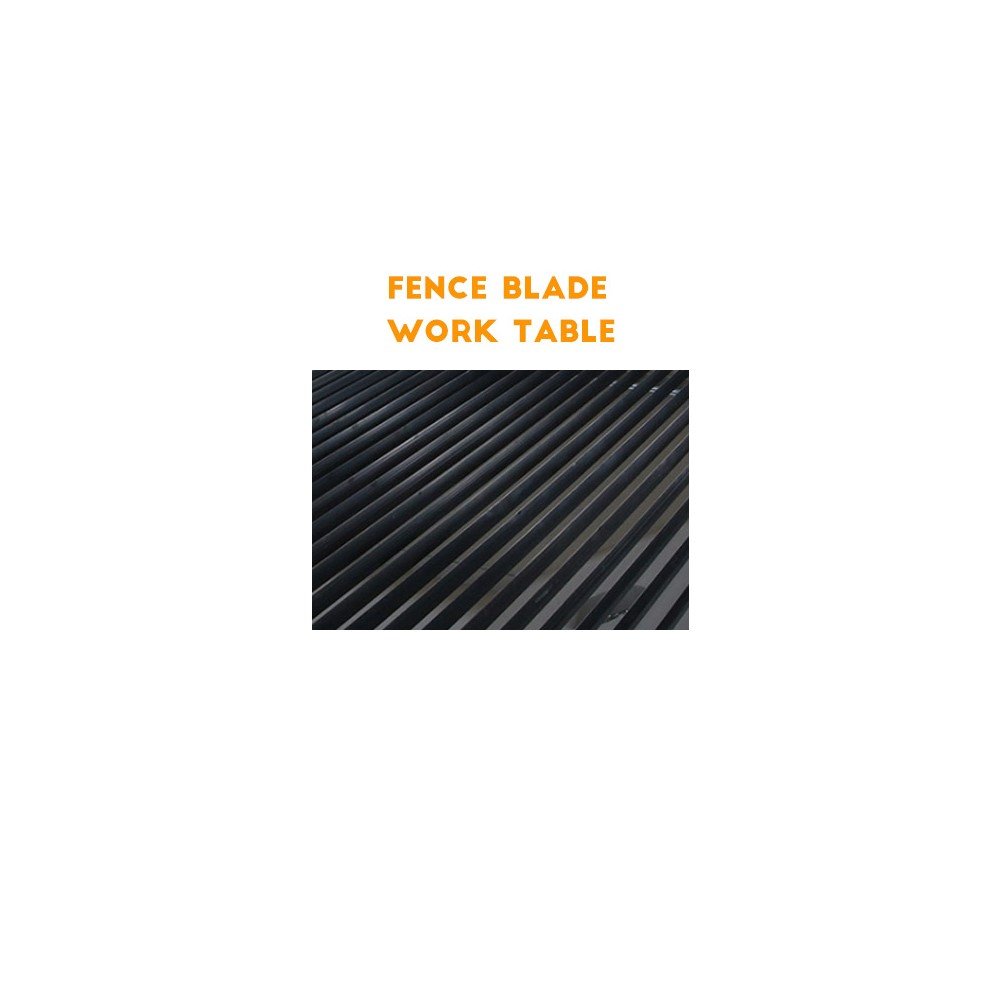

| Working Table | Blade platform |
| Laser Power | 130w |
| Cutting Speed | 0-100 mm/s |
| Engraving Speed | 0-600mm/s |
| Resolution | ±0.05mm/1000DPI |
| Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) |
| Support Fils | BMP,HPGL,PLT,DST and AI |

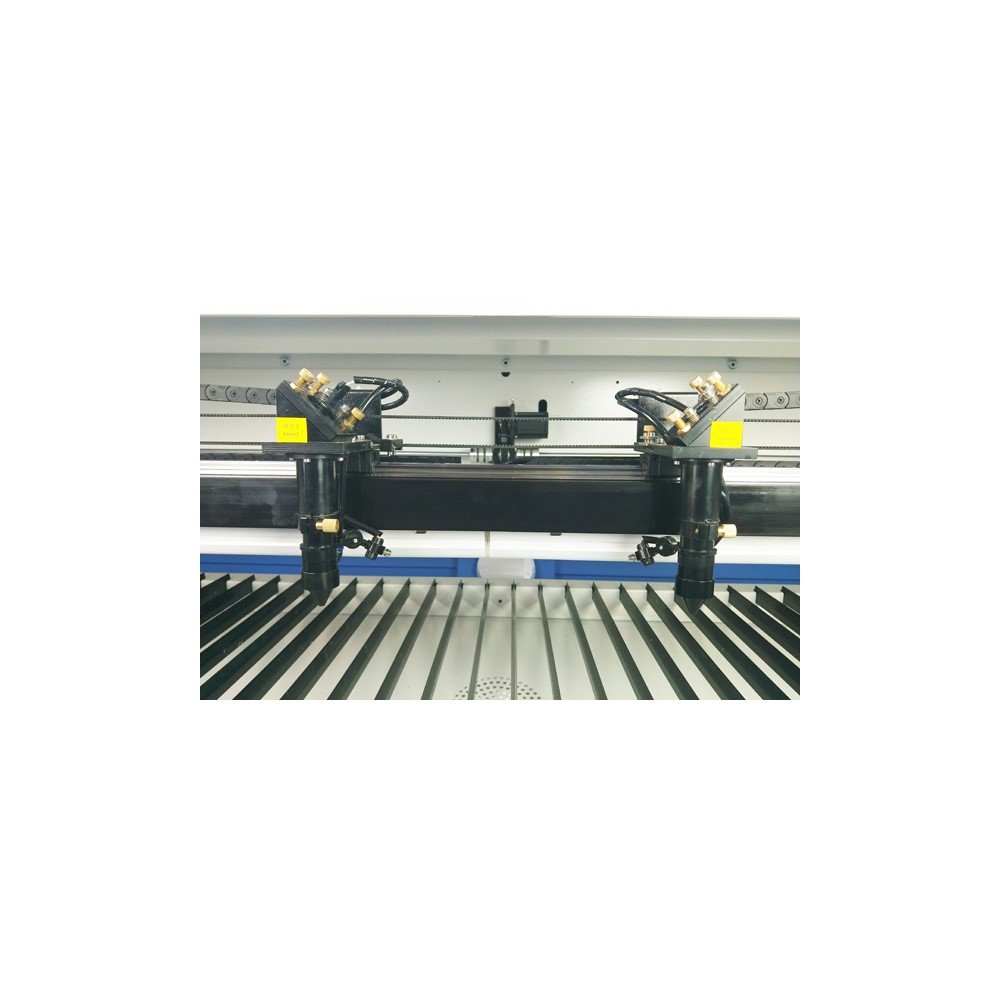

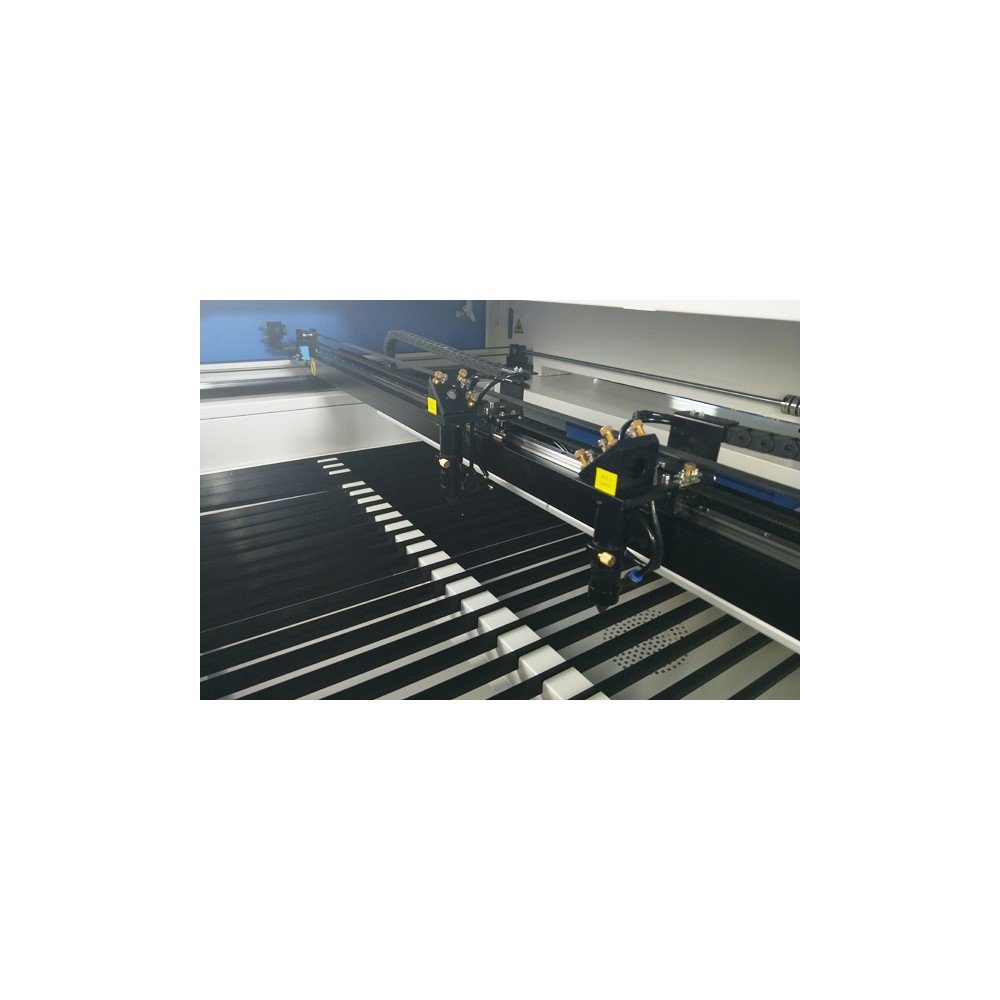

| Laser head | Double laser head |
| Software | Rdworks |
| Computer system | Windows XP/win7/ win8/win10 |
| Motor | Stepper Motor |
| Power Voltage | AC 110 or 220V±10%,50-60Hz |
| Power cable | European Type/China Type/America Type/UK Type |
| Working Environment | 0-45℃(temperature) 5-95%(humidity) |
| Z-Axis Movement | Motor control up and down, |
| Position system | Red-light pointer |

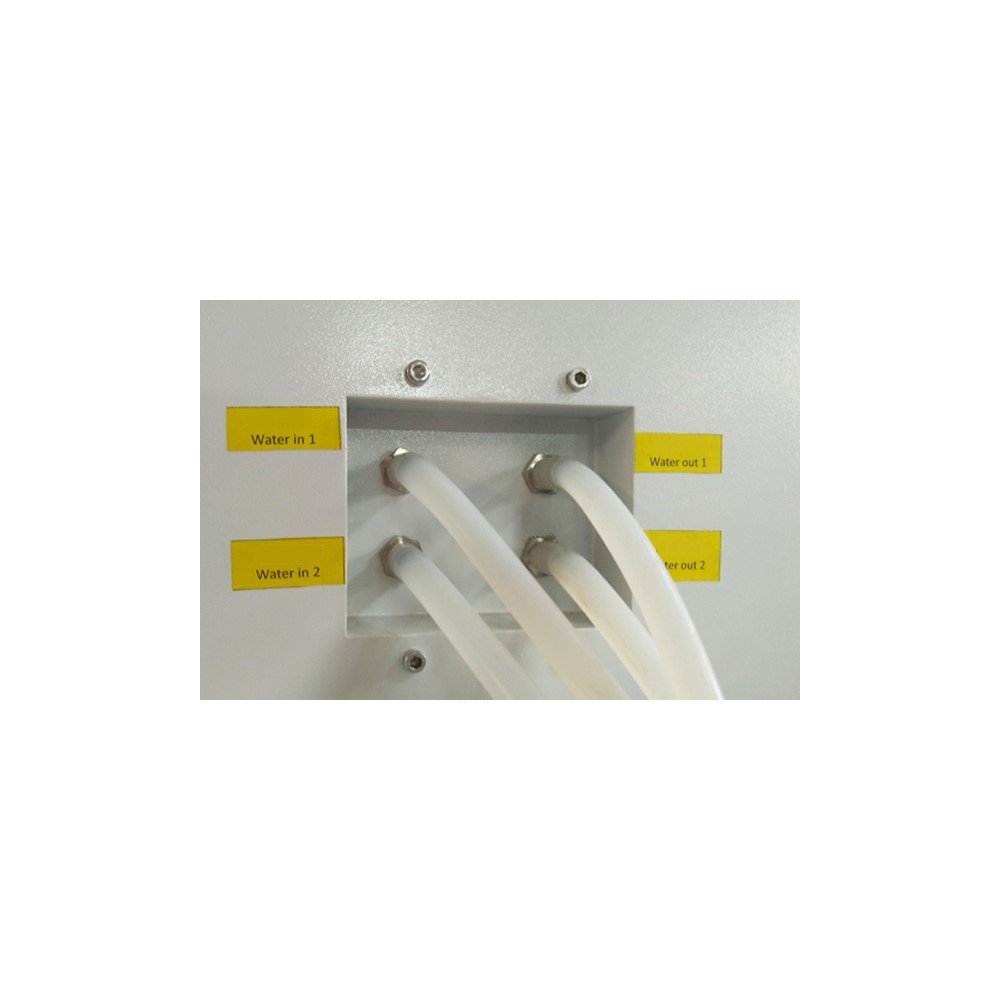

| Cooling way | Water cooling and protection system |
| Packing Size | 206*175*132cm |
| Gross Weight | 420KG |
| Package | Standard plywood case for export |
| Warranty | All life free tech support, two year warranty, except consumables |
| Free accessories | Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable |
| Optional parts | Spare Focus lensSpare Reflecting mirror Spare Rotary for cylinder materials Industrial Water Chiller |
