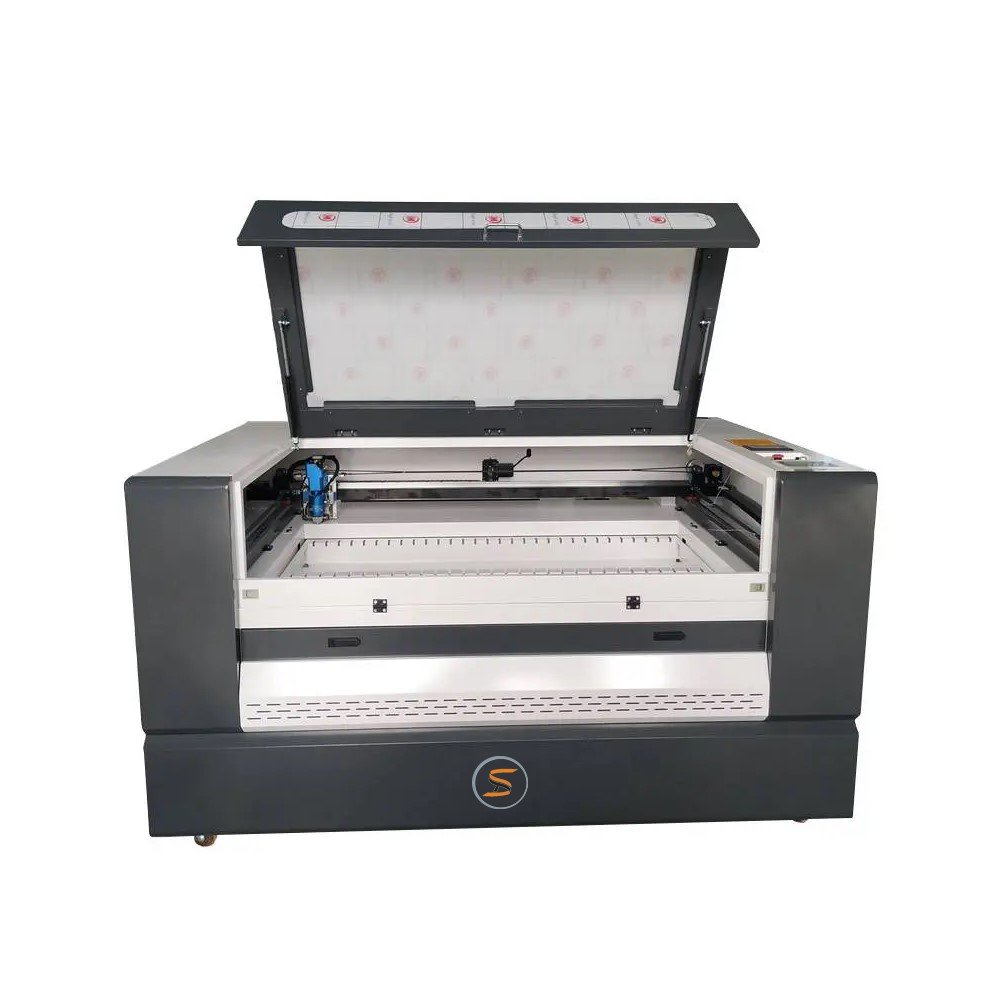

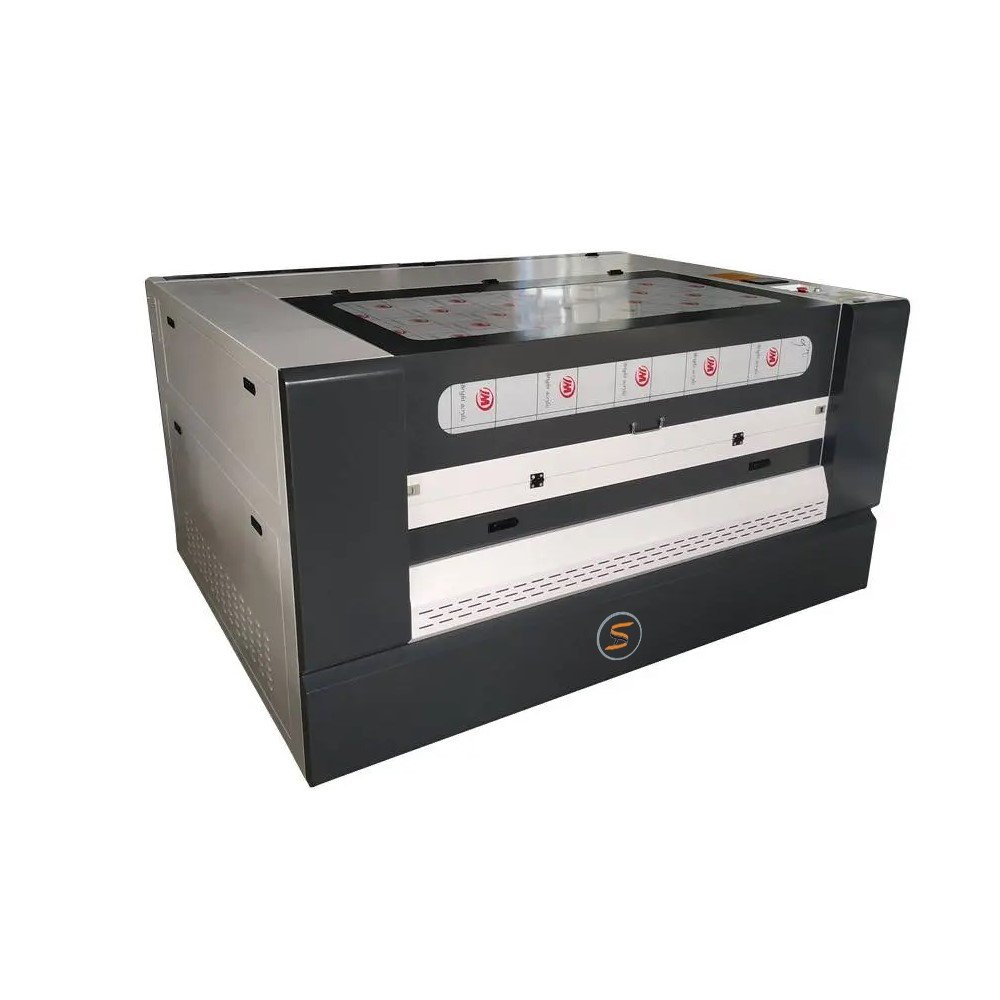

ST1390 Laser Mixing and Cutting Machines
₹289,000.00
Model No. – ST-1390-LMCM
Laser hybrid cutting machine as the name implies not only can cut non-metal, metal can also be cut, it has the advantages of accurate, fast, efficient, good cutting effect, is a special model for crafts and high precision requirements of the product engraving surface design.
Compared to the ordinary CO2 laser cutting machine, the laser mixed cutting machine configuration to be higher, the advantages are obvious, and the use of different configurations can cut different thickness of the workpiece, is widely used in crafts engraving, electronic products engraving, rubber printing plate engraving, model engraving, photographic image engraving and other industries that require high precision engraving.
Quick Technical
- Engraver speed – 1-800 mm/s
- Warranty – One year, except consumable parts
- Cutting speed – 1-100 mm/s depends on materials
- Auxiliary air-Nitrogen, Oxygen, air
- High efficiency:The cutting speed of 1mm stainless steel is 30mm/s,20mm acrylic with prefect cutting quality.
Description
Product Features
- Mixed metal cutting machine 1390,specialized in cutting stainless steel,carbon steel,MDF,die board and wood.
- High efficiency:The cutting speed of 1mm stainless steel is 30mm/s,20mm acrylic with prefect cutting quality.
- Matched with the stepper motor system or Panasonic Servo System and high precision.
- High efficiency,high precision,stable performance and long life.Low running cost about 3-5KVA/hour.
Applicable Material:
Wood,bamboo,jade,marble,organic glass,crystal,plastic,garments,paper,leather,penelope,rubber,ceramic,glass, textile cutting,industrial prototyping,industrial marking,signmaking,medical part marking,aerospace,architectural modeling,specialty advertising,plastics fabricating,flexo,point of purchase,rubber stamps,picture framing,gift manufacturing,bar coding,engraving,gasket cutting,puzzles,cabinetry,awards & recognition,personalized pens, door pulls,cut scroll patterns,games & toys,finger joints,inlays & overlays,fraternity paddles,music boxes,light switch plates,jewelry boxes,parts marking,router templates,desk sets,scrap booking,photo albums,jewelry,crafts, Italian charms.
Applicable Industry:
Advertisement,arts and crafts,leather,toys,garments,model,building upholster,computerized embroidery and clipping,packaging and paper industry.
1390 machine is a mixing cutting machine, specialized in cutting stainless steel, carbon steel, MDF, die board and wood.
High efficiency: it’s easy to cut 1mm stainless steel . 20mm acrylic with perfect cutting quality.
1390 machine is matched with the stepper motor system High efficiency, high precision, stable performance and long life.Low running cost about 3-5KVA/hour.
technical fact
Model | 1390 Laser cutting machine |
Working area | 1300*900mm |
Laser source | Sealed co2 laser tube Reci w6 130-150W/w8 180W |
Control system | Ruida 6332M |
X/Y step motor | 3 phase 57 step motor |
Auxiliary air | Nitrogen, Oxygen, air |
Laser head | Follow-up laser head |
Working table | Blade |
Engraver speed | 1-800 mm/s |
Cutting speed | 1-100 mm/s depends on materials |
Position accuracy | ±0.05mm |
Compatible format | BMP, PLT, DST, AI, DXF etc |
Cooling mode | Constant temperature water cooling and protection system |
Working voltage | 220V±10% 50Hz or 110V±10% 60Hz |
Software supported | ArtCut, PhotoShop (Conversion output)CorelDraw, AutoCAD (Direct output) |
Main Graphic format supported | PLT/DXF/DST/BMP/AI etc. (Direct output) |
Standard Parts | 1)Knife working table with funnel2) Air pump3) Exhaust fans4) Standard cooling system5) Tool box |
Warranty | One year, except consumable parts |
Support | By calling or email or training |
SAMPLES OF PRODUCTS
Product Samples
through STRADE Hub Laser Machines
