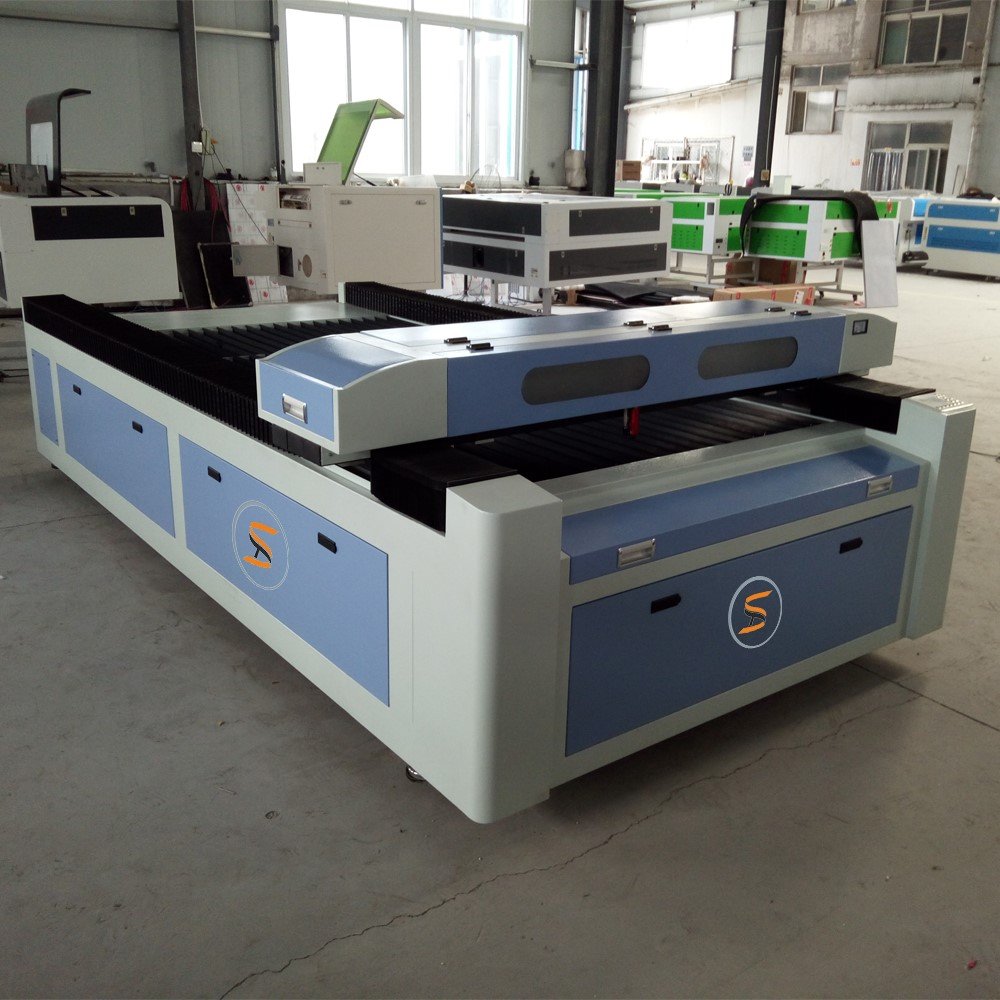

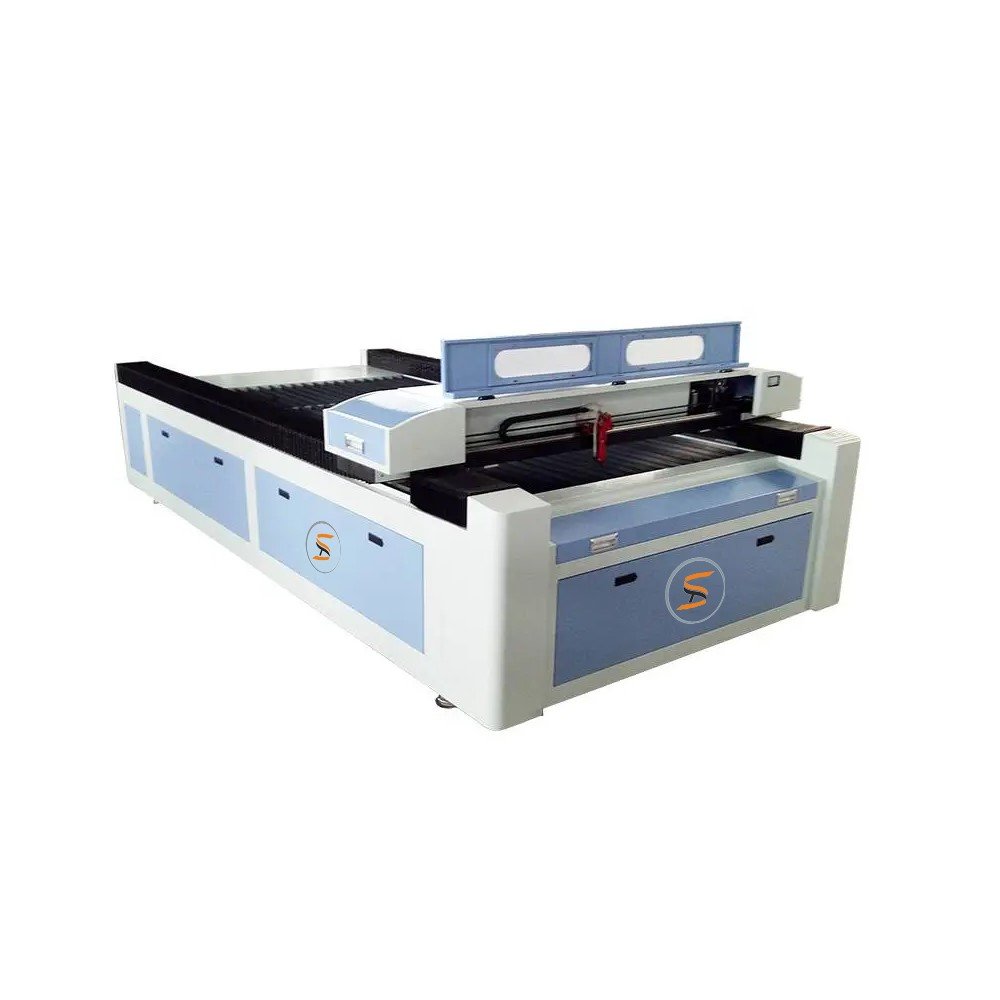

ST1325 CO2 Large Format Laser Cutting Machine
₹650,000.00
Model No. – ST- 1325 – CO2 – LCM-LF
Machine tool gantry type double drive structure, high damping bed, good rigidity, can withstand high speed and acceleration. The automatic exchange table configuration shortens the standby time and effectively increases the working efficiency by more than 30%. The machine tool motion mechanism adopts imported rack and pinion transmission and linear guide rail guidance to ensure high speed, high precision and high reliability of the equipment. Suitable for all kinds of fabric, leather, organic glass, plastic, PVC type, paper, wood and bamboo, rubber, resin, ceramic, granite and other non-metal.
Quick Technical
- Engraver speed – 0-600mm/s
- Laser Power -80w/100w/130w/150w
- Cutting speed – 0-100 mm/s
- Gross Weight – 850KG
- Color – Blue and White
Description
Product Features

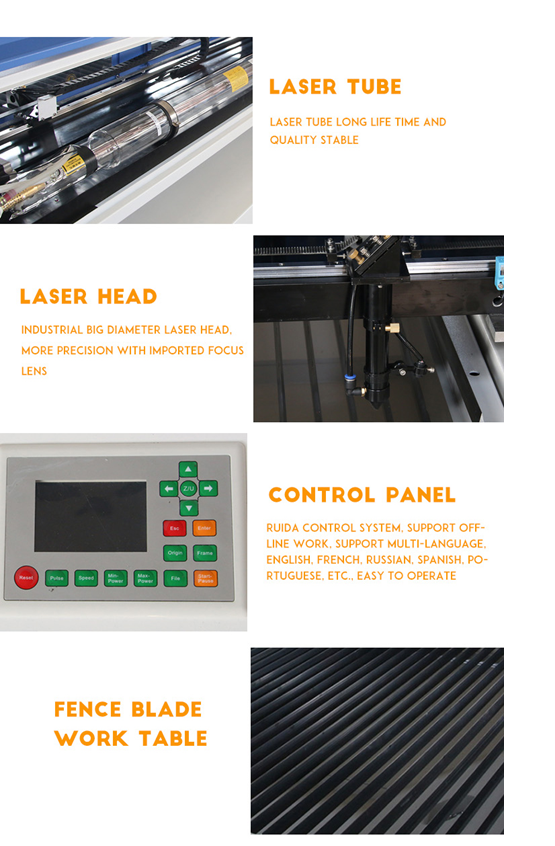

- Professional Ruida 6442S laser control system,precise,stable and fast.
- Brand laser tube,good spot quality,stable output power,good engraving effect.
- Usb2.0 interface,support offline work.
- Color LCD display,support multi-language operation.
- Taiwan PMI linear guide rail makes the optical path run more smoothy and the engraving and cutting effect is much more better.
- The cabinet design is more sturdy and equipped with a waste collection drawer for easy collection of cutting waste.
- Electric UP&Down platform,convenient for customers to place thick materials
- Optional rotary attachment,convenient for customers to engrave the required materials.
- Large working area,suitable for engraving and cutting large area materials.
Applicable Material:
Wood products, plywood, Acrylic, Plastic, Cloth, Leather, Paper, Rubber, Bamboo, Marble, Double layer plastic, glass, wine bottles etc.
Applicable Industry :
Advertising signs, craft gifts, crystal jewelry, paper cutting technology, architectural models, lighting, printing and packaging, electronic appliances, clothing bags, photo frame production and other industries.
Product Accessories
technical fact
Model | ST1325 laser engraving and cutting machine |
Colour | Blue and white |
Working Table Size | 1300mmm *2500mm |
Laser Tube | Sealed CO2 glass Tube |
Working Table | Blade platform (aluminum blade platform optional) |
Laser Power | 80w/100w/130w/150w |
Cutting Speed | 0-100 mm/s |
Engraving Speed | 0-600mm/s |
Resolution | ±0.05mm/1000DPI |
Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) |
Support Fils | BMP,HPGL,PLT,DST and AI |
Interface | USB2.0 |
Software | Rd works |
Computer system | Windows XP/win7/ win8/win10 |
Motor | 57 Stepper Motor |
Power Voltage | AC 110 or 220V±10%,50-60Hz |
Power cable | European Type/India Type/America Type/UK Type |
Working Environment | 0-45℃(temperature) 5-95%(humidity) |
Position system | Red-light pointer |
Cooling way | Water cooling and protection system |
Packing Size | 2850*1900*1070mm |
Gross Weight | 850KG |
Cutting thickness | Please consult sales |
Package | Standard plywood case for export |
Warranty | All life free tech support, two-year warranty, except consumables |

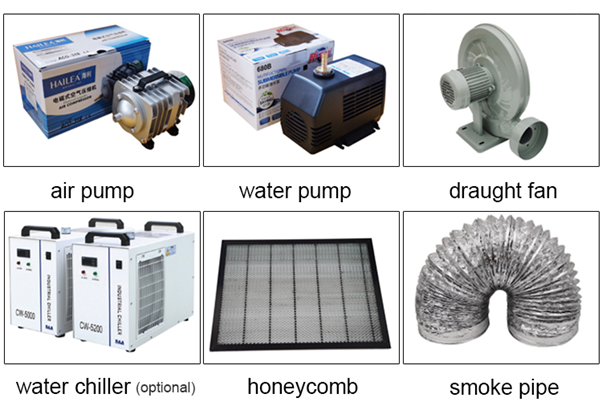

Free accessories | Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable |
Optional parts | Spare Focus lens Spare Reflecting mirror Spare Rotary for cylinder materials Industrial Water Chiller |
SAMPLES OF PRODUCTS
Product Samples
