Small Portable Fiber Laser Marking Machine
₹225,000.00
Model No. – ST-LMM-SP
Small Portable Fiber Laser Marking Machine
Compared with the traditional marking machine, the style is unique and novel, the whole machine and the size of the computer host box, small and convenient, easy to move work, the equipment comes with a computer host, can be industrial marking, performance diversification.
Quick Technical
- Power – 20W
- Laser Brand – Raycus/IPG/MAX
- Communication Interface – USB
- Comes with a computer stand, Easy to install computer display.
Description
Features :
- Closed Desktop design, comes with a cabinet worktable.
- High quality light source, good spot quality, uniform optical power density, stable output optical power, no light leakage, high anti-reflection.
- Using high speed scanning galavanometer, small size, fast speed, good stability.
- Comes with a computer stand, easy to install computer display.

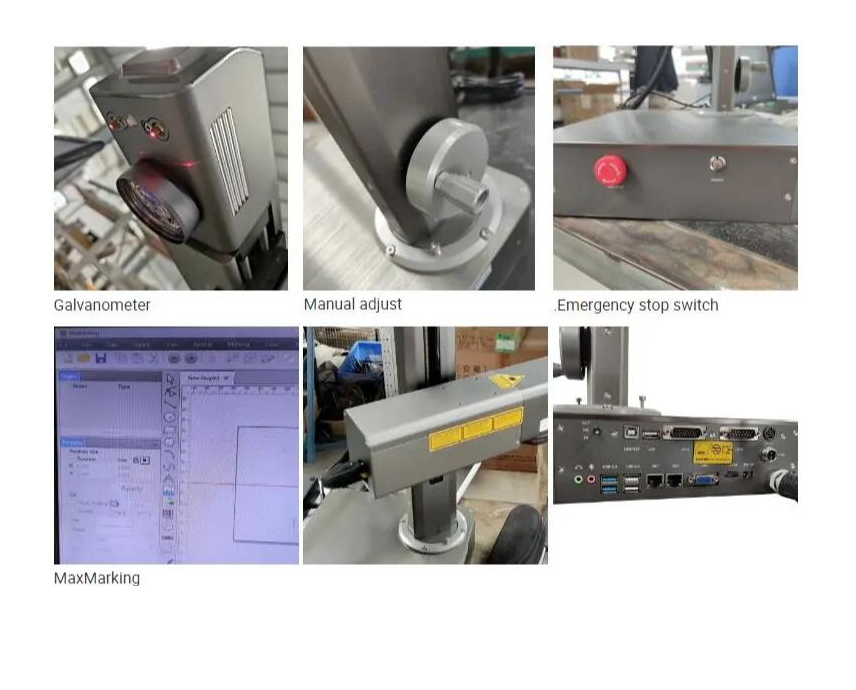

Parts & Components
technical fact
| Model | ST-LMM-SP |
| Power | 20W |
| Laser Brand | Raycus/IPG/MAX |
| Galvanometer | Sino |
| Main board | Beijing JCZ |
| Software | EZCAD 2.14.10 |
| Marking Area | 110mm*110mm |
| Marking Depth | ≤0.5mm |
| Marking Speed | ≤7000mm/s |
| Minimum Line Width | 0.012mm |
| Life-span of Fiber Laser Module | 100, 000hours |
| Beam Quality | M2 <1.5 |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| System Operation Environment | Windows 7/8/10 |
| Cooling Mode | Air cooling–Built-in |
| Temperature of Operation | 15ºC~35ºC |
| Package size | 67*37*31cm |
| Package weight | 17kg |
| Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Power Requirement | <600W |
| Communication Interface | USB |
