Mini portable Laser marking machine with computer inside
₹210,000.00
Model No. – ST- MPLMM – WCI
Small and convenient, efficient and stable, built-in independent computer, mini-foldable, 360° marking more flexible and unrestricted.
With its own computer all-in-one machine, more convenient operation and editing, no need to buy a separate computer, easy 360° free rotation, more flexible marking range, unlimited range, stable beam processing efficiency, automatic production of high precision work
Quick Technical
- Laser Brand – Raycus (Maxphotonics/IPG Optional)
- Power – 20W /30W
- Marking Speed -7000 mm/s
- Gross weight – 55KG
- When the marking surface is not horizontal, the tilt can be adjusted at will to ensure a more beautiful marking effect
Description
Product Features

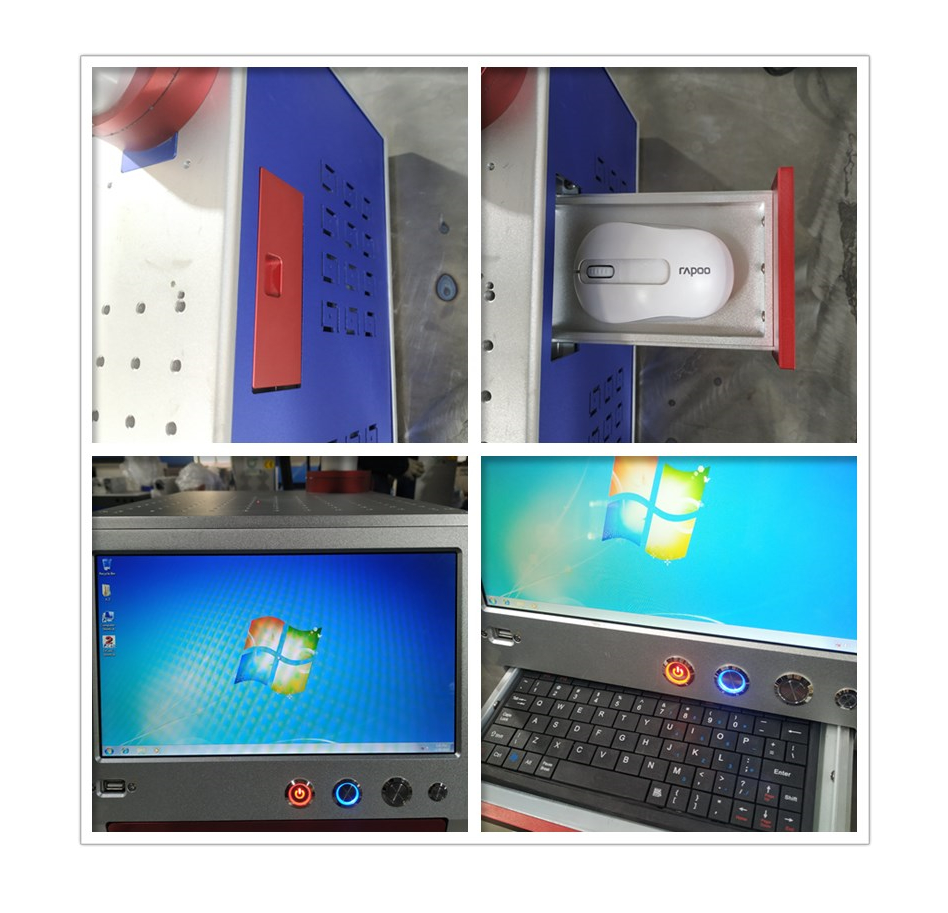

1.New style, beautiful and generous appearance, comes with independent computer
2.For oversized products, rotating bracket can be adjusted to the right position for more flexible marking
3.When the marking surface is not horizontal, the tilt can be adjusted at will to ensure a more beautiful marking effect
technical fact
Type | Intergrated computer Laser Marking Machine |
Power | 20W /30W |
Laser Brand | Raycus (Maxphotonics/IPG Optional) |
Marking Area | 110mm*110mm |
Optional Marking Area | 110mm*110mm/150mm*150mm/200mm*200mm |
Marking Depth | ≤0.5mm |
Marking Speed | 7000mm/s |
Minimum Line Width | 0.012mm |
Minimum Character | 0.15mm |
Repeated Precision | ±0.003mm |
Life-span of Fiber Laser Module | 100 000hours |
Beam Quality | M2 <1.5 |
Focus Spot Diameter | <0.01mm |
Output Power of Laser | 10%~100% continuously to be adjusted |
System Operation Environment | Windows XP / W7–32/64bits / W8–32/64bits |
Cooling Mode | Air cooling–Built-in |
Temperature of Operation Environment | 15℃~35℃ |
Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
Power Requirement | <400W |
Communication Interface | USB |
Package Dimension | 720mm x 460mm x 500mm |
Gross weight | 55KG |
Optional (Not free of charge) | Rotary Device, Moving Table, other customized Automation |

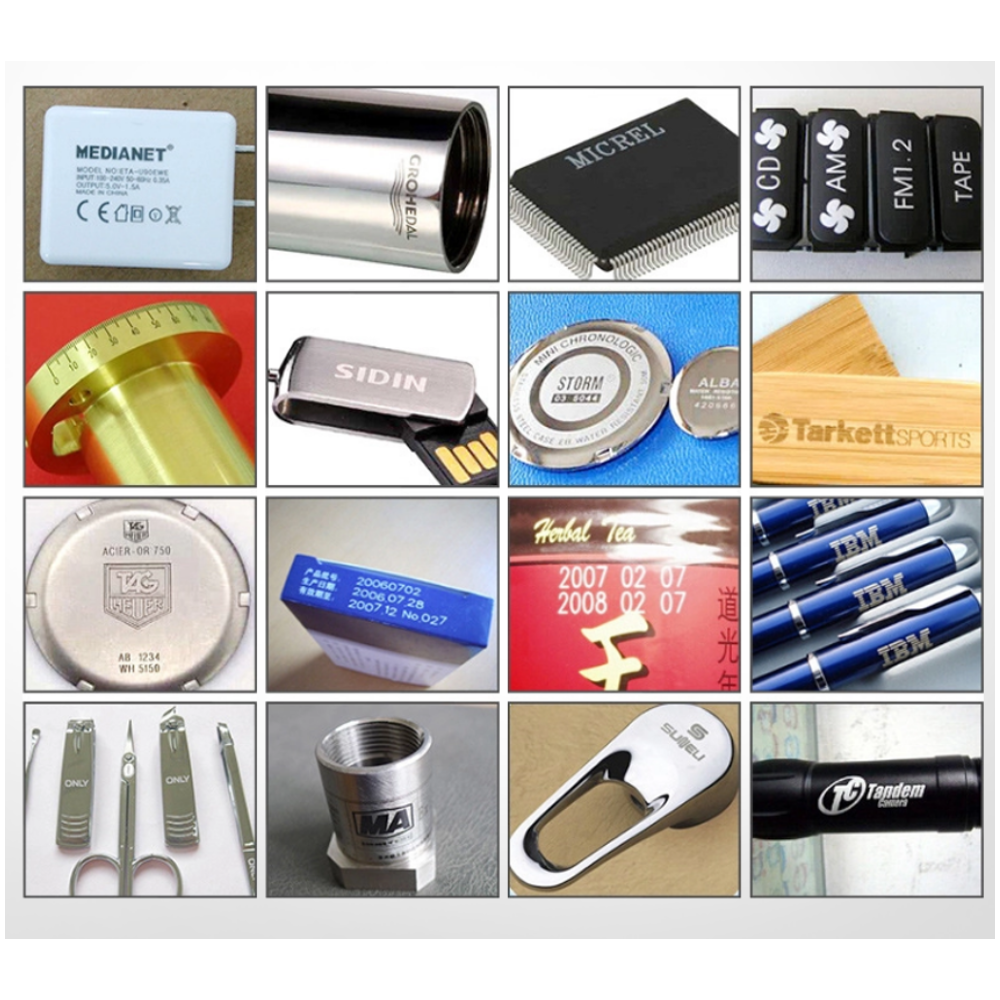

SAMPLES OF PRODUCTS
Product Samples
