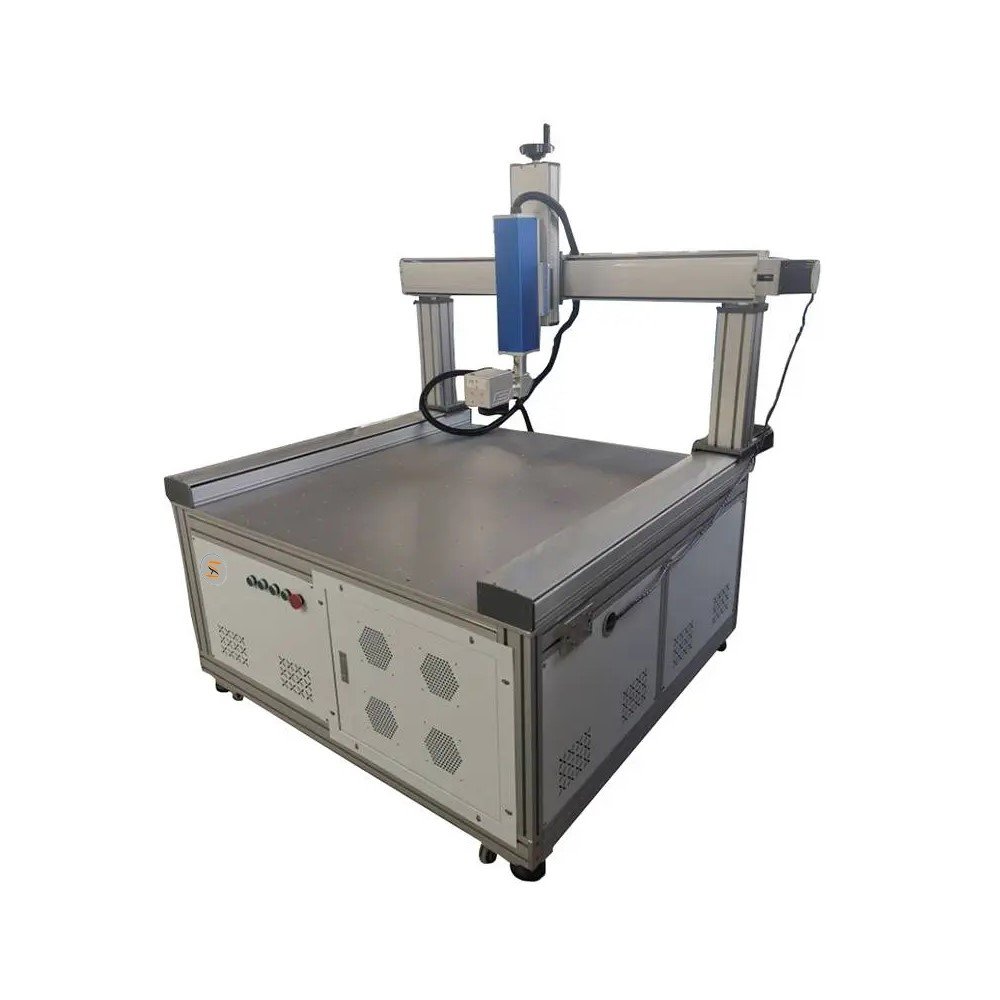

Large Format Seamless Splicing Gantry Type Fibre Optic Marking Machine
₹390,000.00
Model No. – ST-LMM-LFSS
Large Format Seamless Splicing Gantry Type Fibre Optic Marking Machine
The gantry type fibre optic marking machine is a new seamless stitching marking machine developed and launched mainly for large format continuous marking.
The gantry type fiber optic marking machine with advanced aluminum alloy slide rail, three-dimensional directional movement of the vibration lens and marking head, to achieve a large surface seamless splicing marking.
Quick Technical
- Power – 20W/30W/50W

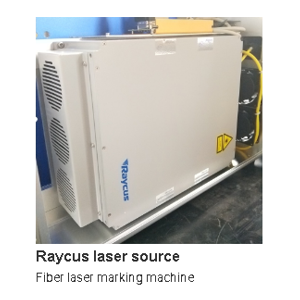

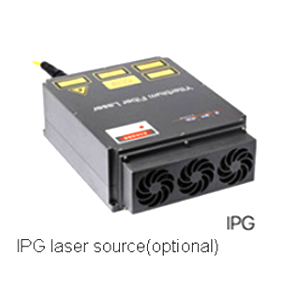

- Laser Brand – Raycus (Maxphotonics/IPG as optional)
- Desktop design, 1000*1000mm work area, comes with a cabinet worktable
- Using High Speed Scanning Galavanometer, small size, fast speed, good stability
Description
Features :
- Desktop design,1000*1000mm work area, comes with a cabinet worktable.
- High quality light source, good spot quality, uniform optical power density, stable output optical power, no light leakage, high anti-reflection.
- Using high speed scanning galavanometer, small size, fast speed, good stability.
- Comes with a computer stand, easy to install computer display. Fiber laser marking machine
Applied Materials :
All Metals
Gold, Silver, Titanium, Copper, Alloy, Aluminum, steel, Manganese steel, magnesium, Zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition.
Non-metallic
Non-metallic Coating materials, Industrial Plastics, Hard Plastics, Rubber, Ceramics, Resins, Cartons, Leather, Clothes, Wood, Paper, Plexiglass, Epoxy resin, Acrylic resin, Unsaturated Polyester resin material
applicable industries :
Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.
Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising logo and other non-metallic industries.
Parts & Components
technical fact
Model | ST-LMM-FO |
Power | 20W/30W/50W |
Laser Brand | Raycus (Maxphotonics/IPG as optional) |
Galvanometer | Sino |
Main board | Beijing JCZ |
Software | EZCAD 2.14.10 |
Marking Area | 1000mm*1000mm |
Marking Depth | ≤0.5mm |
Marking Speed | ≤7000mm/s |
Minimum Line Width | 0.012mm |
Life-span of Fiber Laser Module | 100, 000hours |
Beam Quality | M2 <1.5 |
Output Power of Laser | 10%~100% continuously to be adjusted |
System Operation Environment | Windows 7/8/10 |
Cooling Mode | Air cooling–Built-in |
Temperature of Operation | 15ºC~35ºC |
Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
Power Requirement | <600W |
Communication Interface | USB |

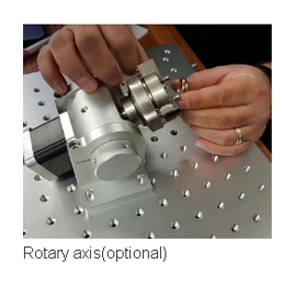

Optional (Not free of charge) | Rotary Device, Moving Table, other customized Automation |
SAMPLES OF PRODUCTS
Product Samples Cutting
through STRADE Laser Cutting Machines
